Overview

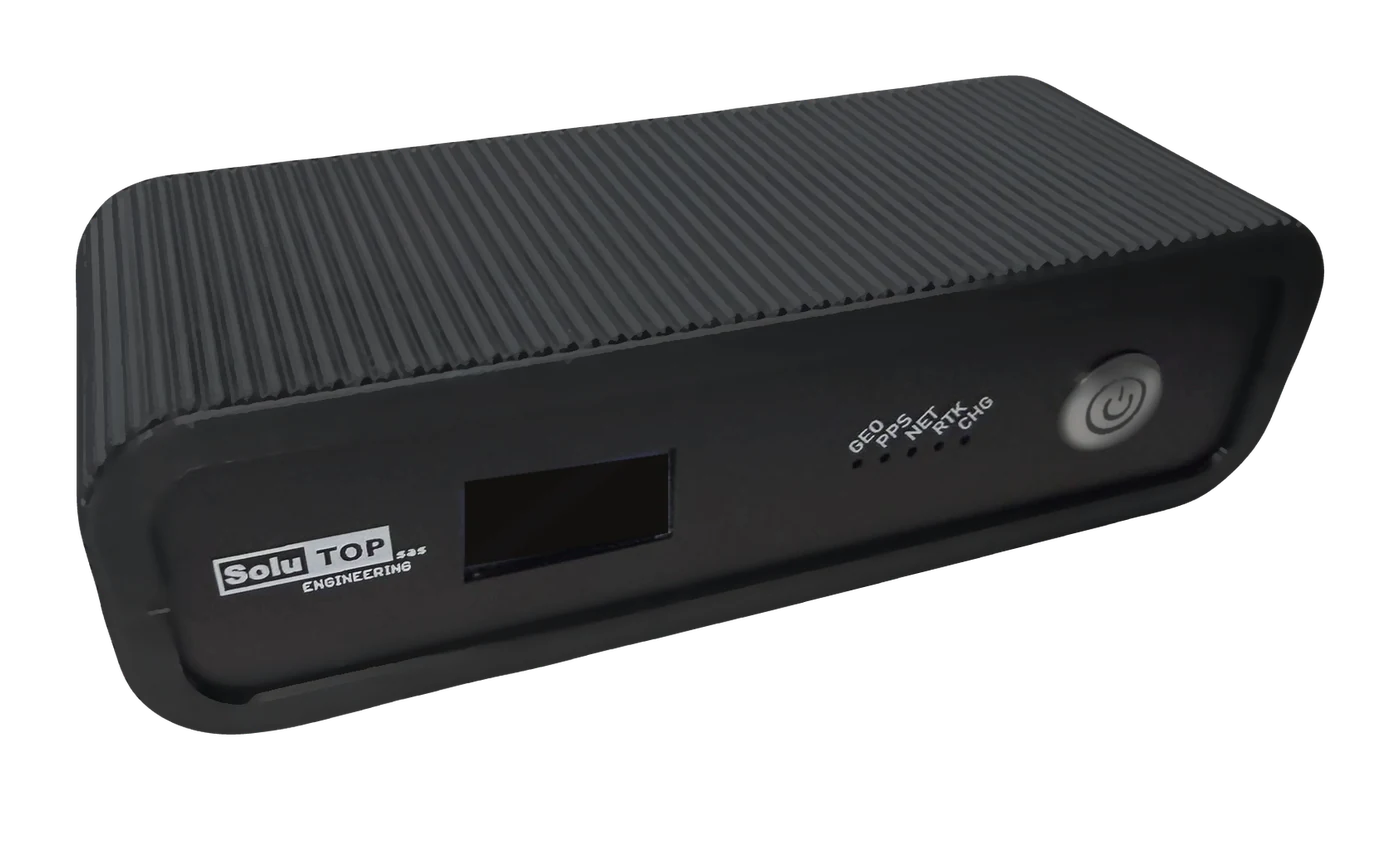

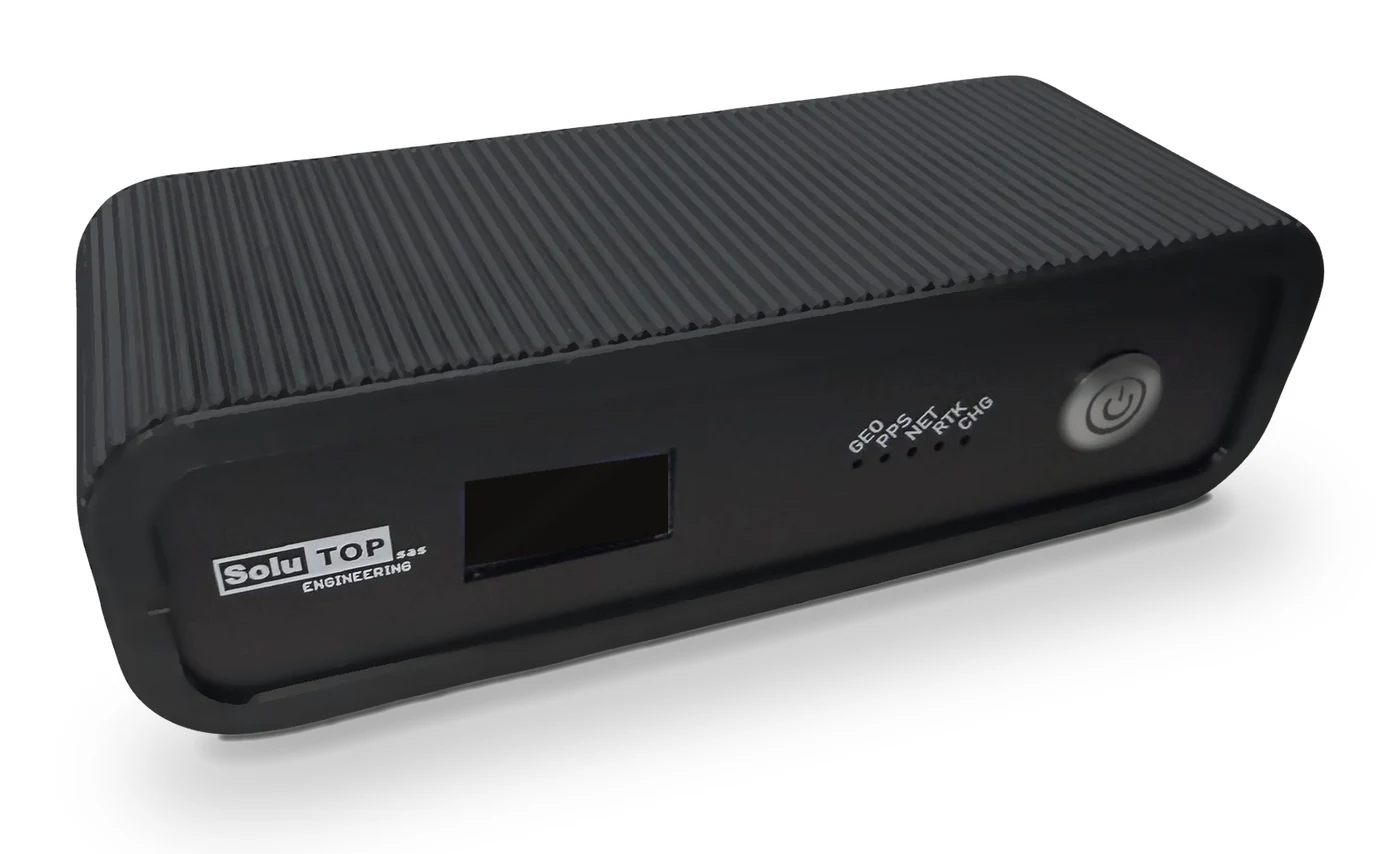

Figure 1 — MS2net, the reference station
MS2net is a multi-band GNSS RTK reference station. As a base it knows its own position and sends RTCM corrections to the rovers: over its LoRa radio, to NTRIP casters on the Internet, and to other MS2net units over the ESP-Now radio link. As a rover it receives those corrections and reaches centimetre-level positions.
Everything is set from a web page served by the station itself: the browser of a phone or a PC is all it takes, with nothing to install.
Where to start
-
1 · Hardware
The station: front panel with display, LEDs and button, rear panel with the connectors, serial port, power and battery.
-
2 · Kit contents
What the case holds, where each piece connects and what else is needed.
-
3 · Getting started
Antennas, power, switching on, opening the configuration page and the first settings.
-
4 · The display
Every screen and every icon, in rover, in base and in Config mode.
-
5 · RTK corrections
Rover or base, where the corrections come from and where they go: one recipe per case.
-
6 · Using the panel
The configuration page: header, Save and Exit, then one page per section.
-
7 · Troubleshooting
Display messages, a page that will not open or loses the connection, a rover without a fix.
Also: MicroSD logging · Firmware update · Serial menu · Glossary
