Kit contents
Besides the MS2net reference station, the case holds the accessories needed to put it to work: the three antennas, the GNSS antenna cable and the power supply.
Standard supply
The standard supply is what the table under In the case shows, packed in a hard case with shaped foam.
Important
Besides the supply you also need:
- to work in RTK, a source of corrections: an NTRIP caster reachable over WiFi, or a second MS2net as a base, linked by LoRa radio or ESP-Now;
- a phone, tablet or computer with a browser, for the configuration from the panel;
- to record data, a microSD card in the LOG slot (see MicroSD logging).
In the case

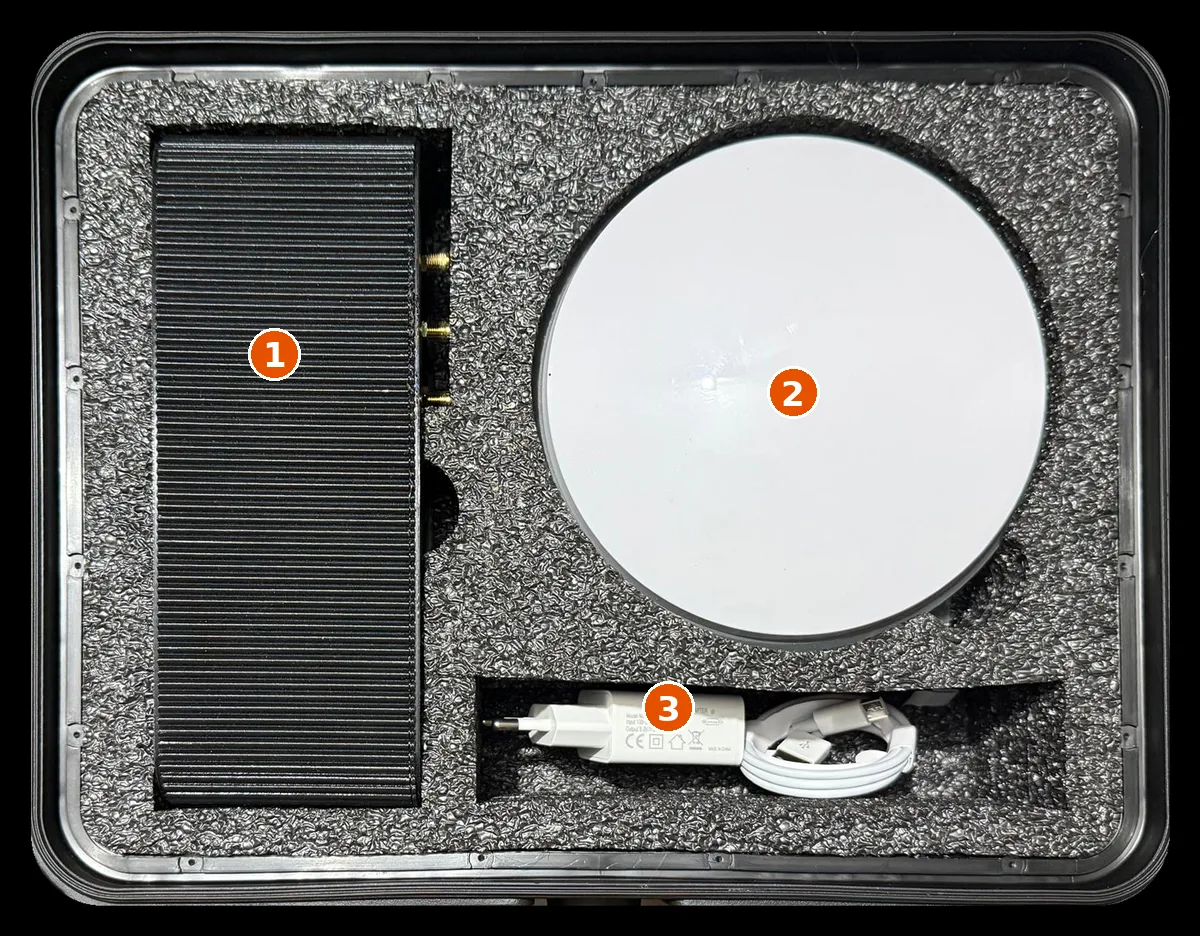

Figure 1 — Open case, top layer

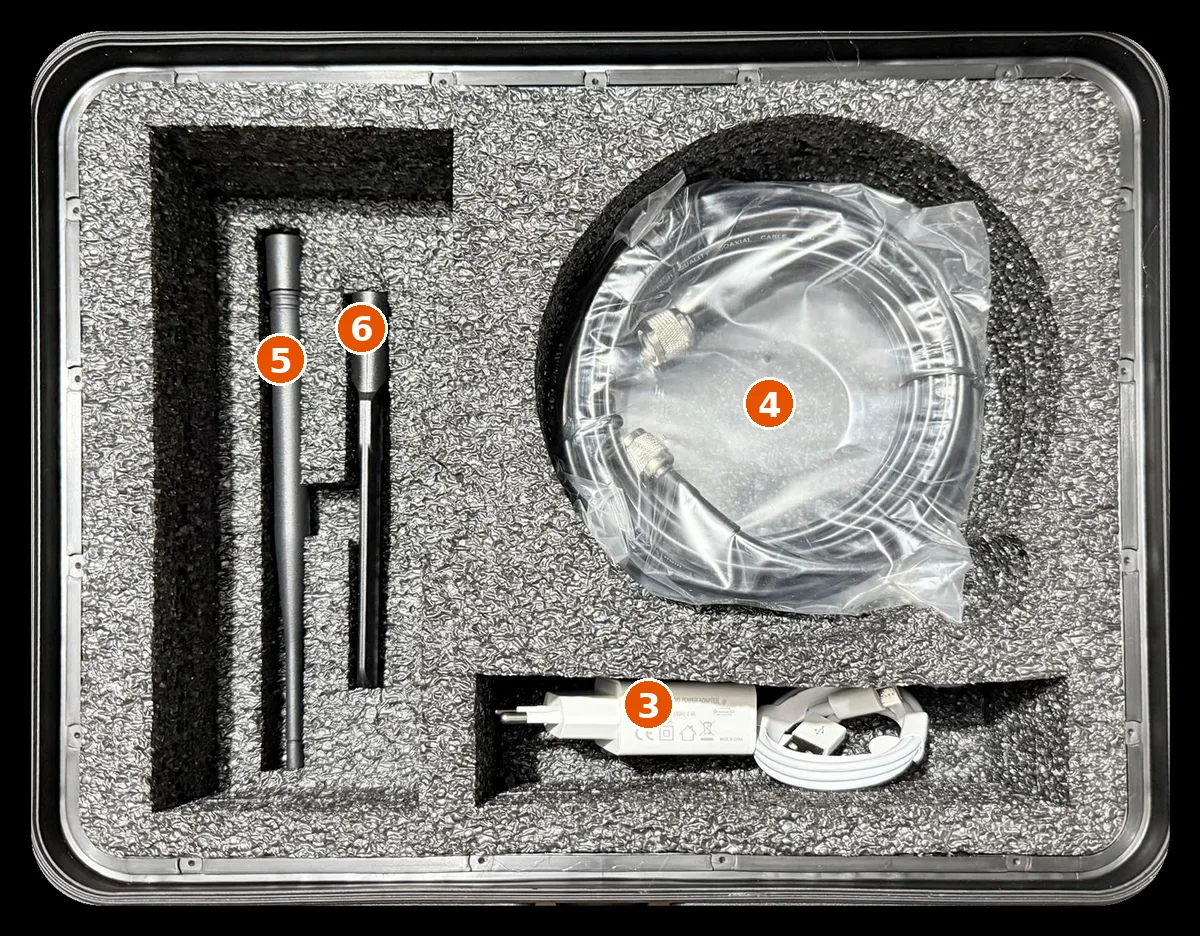

Figure 2 — Open case, bottom layer
| No. | What | Connects to |
|---|---|---|
| 1 | The MS2net reference station | — |
| 2 | High-gain multi-band GNSS antenna (white) | cable 4 |
| 3 | 5 V / 2 A power supply with USB-A / USB-C cable | PWR |
| 4 | 2 m TNC–TNC coaxial cable with TNC–SMA adapter | from antenna 2 to ANT, through the adapter |
| 5 | LoRa radio antenna, 868 MHz, 3 dBi | LOR |
| 6 | High-gain WiFi antenna, also used by Bluetooth and ESP-Now | ESP |
The connectors are described under Hardware › Rear panel.
